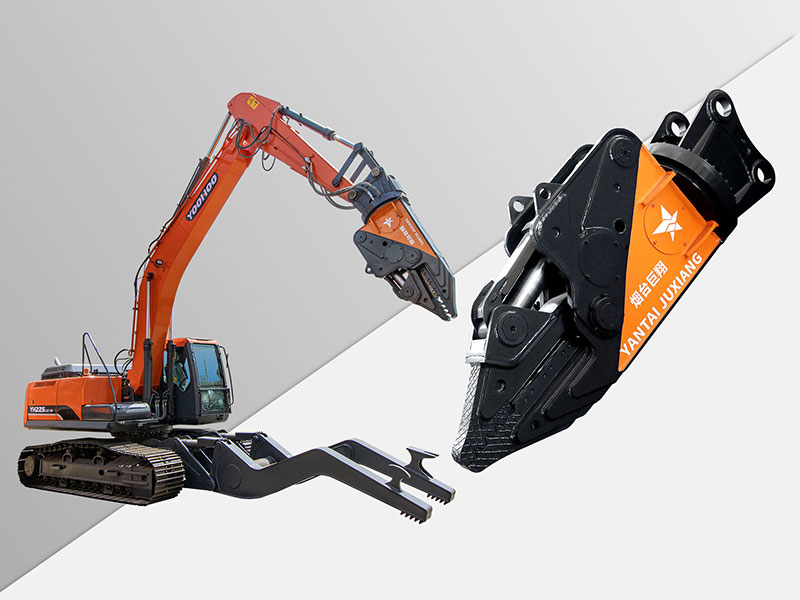

Disassembly All-in-one Machine
Company Name:Yantai Juxiang Construction Machinery Co., LTD
Contact information:+86-17362111736
Company Address:No.208 Fenghuangshan Road, Yantai City, Shandong, China

Product Details

Product inquiry

Product features:

1. Special rotary support is used, which is flexible in operation, stable in performance and high in torque.

2. The shear body adopts imported HARDOX400 sheet, which has high strength and high shear force.

3. The blades are made of imported materials and have a longer life span.

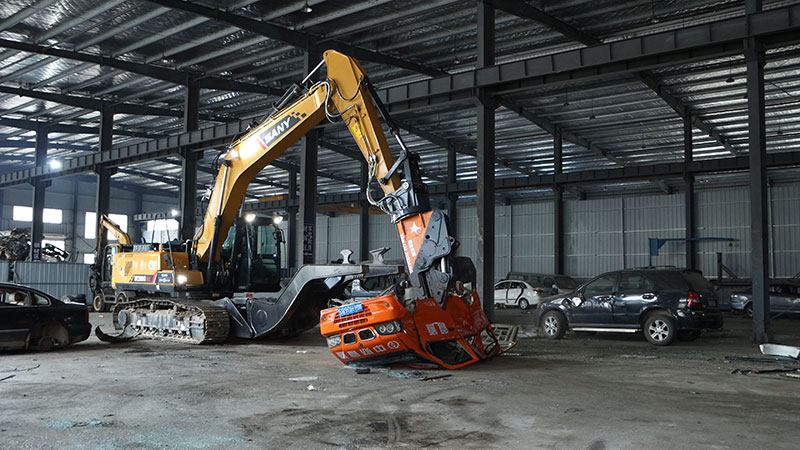

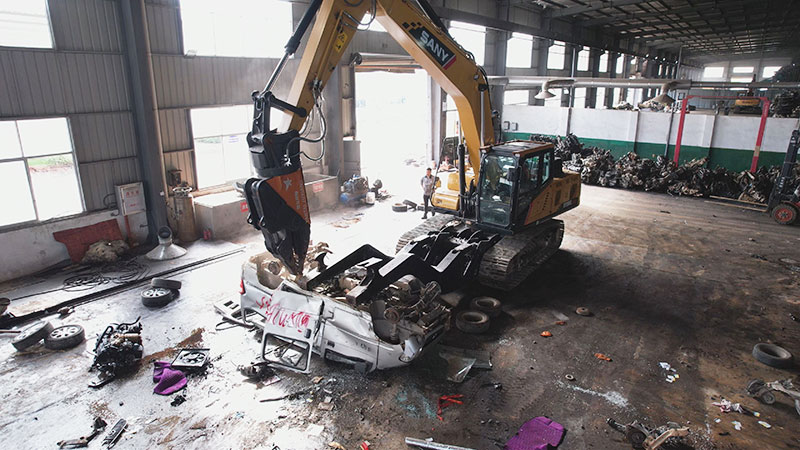

4. The pressure clamp arm is fixed to the disassembled vehicle from three directions to facilitate the disassembly of the disassembly scissors.

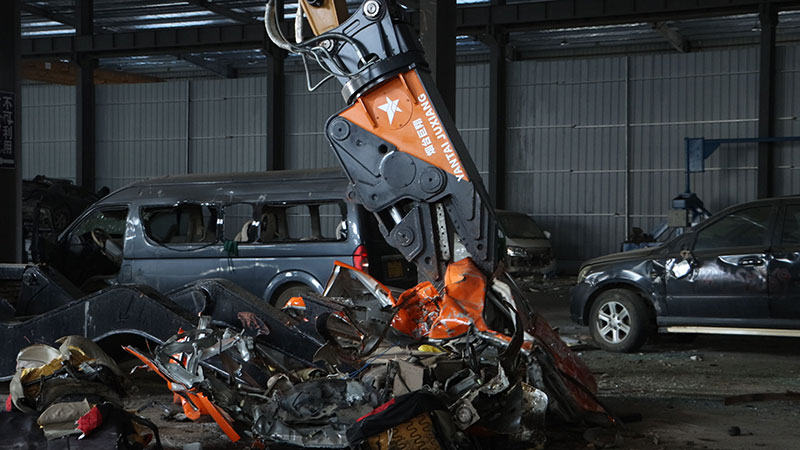

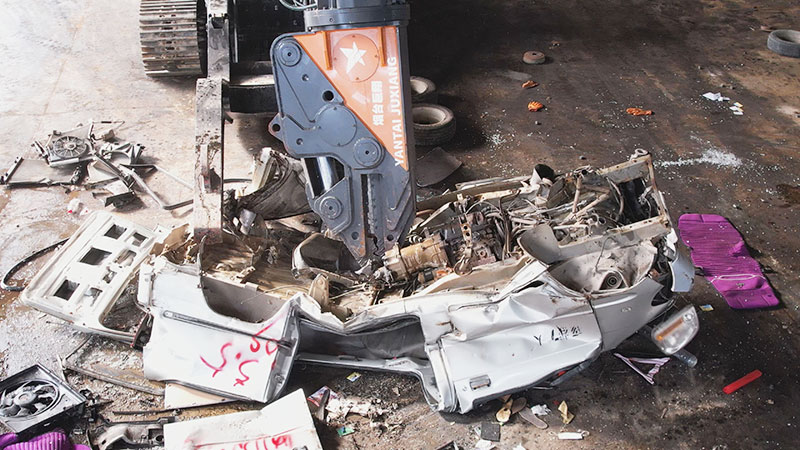

5. Disassembly shears with pressure clamp arms can quickly disassemble all kinds of scrapped vehicles.

Demolition scissors

Model	Unit	VS08C
Product weight	kg	1900
Max. opening	mm	630
Length	mm	2475
Width	mm	760
Rotation method		360° hydraulic
Pressure	bar	320
Root shear force	t	150
Central shear force	t	106
Front end clamping force	t	56
Suitable for excavator	t	18-26

Pressure clamp arm

Model	Unit	Ordinary pressure clamp arm	Multifunctional pressure clamp arm
Weight	kg	3100	3500
Length	mm	4850	5150
Width	mm	1400	2730
Downward pressure distance	mm	1960	2160
Closing distance	mm		2740
